Compressed air storage tank
Key words: air receiver; air tank; gas storage tank
-H 2377*Diameter 800mm
-volume:1000L, rated pressure: 8bar, type: vertical
-accessories parts: pressure gauge, safety valve, drain valve.

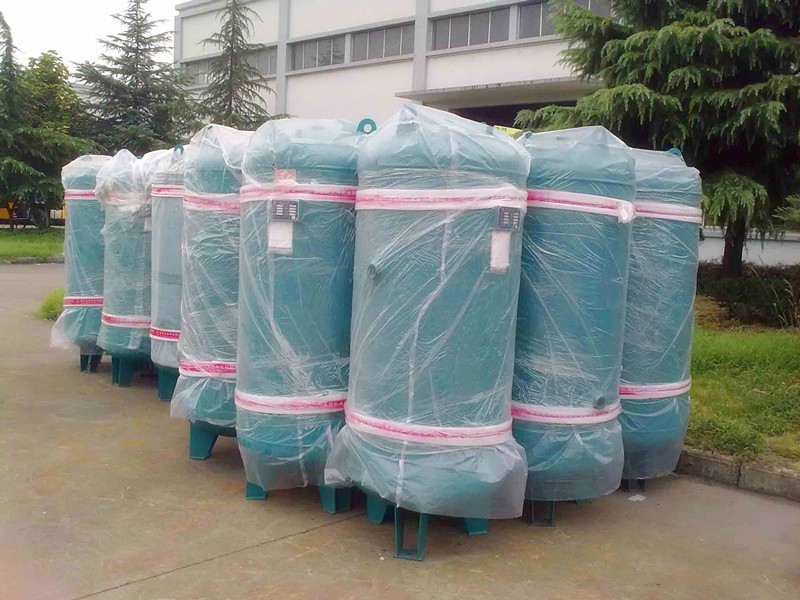

-packaging: nude packed. If customer wants to pack by standard exportable wooden case, need to add wooden case cost.
Air Tank/ Receiver Technical Data (Vertical)
Model | Volume (L) | Pressure(bar) | Tank Height(mm) | Diameter (mm) | Inlet/Outlet (DN) | Safety Valve Connector | Drain Valve Connector |
0.3/0.8 |
300 | 8 | 1640 |
550 |
65/65 |
Rp1 |
R3/4 |
0.3/1.0 | 10 | 1640 | |||||
0.3/1.3 | 13 | 1640 | |||||
0.3/1.6 | 16 | 1640 | |||||
0.6/0.8 |
600 | 8 | 1854 |
700 |
65/65 |
Rp1 1/2 |
R3/4 |
0.6/1.0 | 10 | 1865 | |||||
0.6/1.3 | 13 | 1866 | |||||
0.6/1.6 | 16 | 1870 | |||||
1.0/0.8 |
1000 | 8 | 2377 |
800 |
65/65 |
Rp1 1/2 |
R3/4 |
1.0/1.0 | 10 | 2347 | |||||
1.0/1.3 | 13 | 2347 | |||||
1.0/1.6 | 16 | 2350 | |||||
1.5/0.8 |
1500 | 8 | 2350 |
1000 |
80/80 |
Rp1 1/2 |
R3/4 |
1.5/1.0 | 10 | 2354 | |||||
1.5/1.3 | 13 | 2350 | |||||
1.5/1.6 | 16 | 2354 | |||||
2.0/0.8 |
2000 | 8 | 2646 |
1100 |
100/100 |
Rp1 1/2 |
R3/4 |
2.0/1.0 | 10 | 2648 | |||||
2.0/1.3 | 13 | 2648 | |||||
2.0/1.6 | 16 | 2648 | |||||
3.0/0.8 |
3000 | 8 | 2831 |
1300 |
100/100 |
Rp1 1/2 |
R3/4 |
3.0/1.0 | 10 | 2831 | |||||
3.0/1.3 | 13 | 2831 | |||||
3.0/1.6 | 16 | 2831 |
