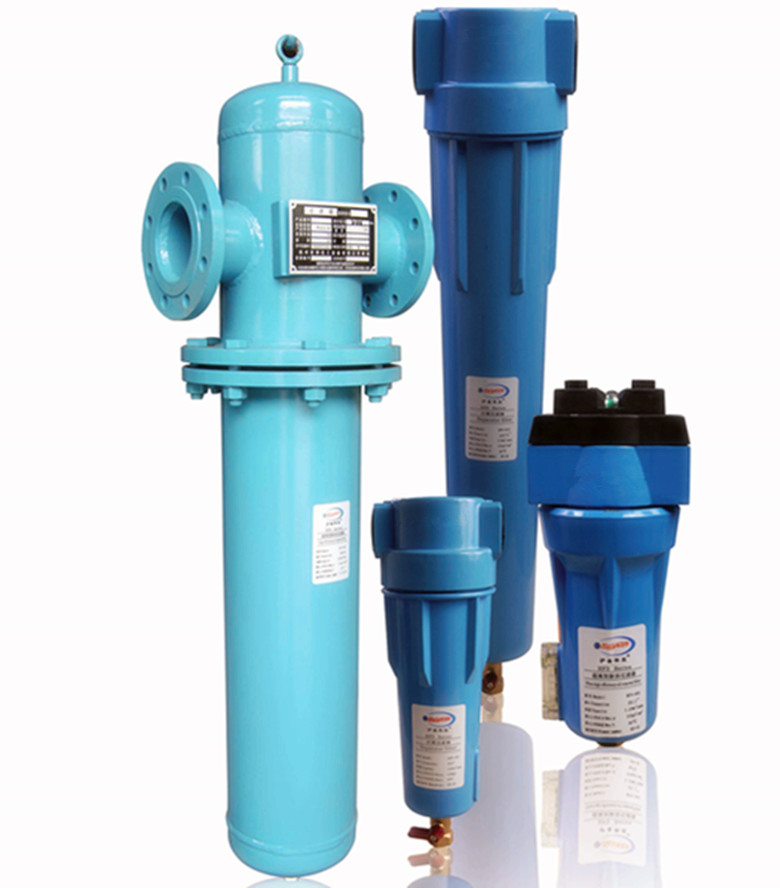

After-cooler, High efficiency oil removal, Oil water separator
High efficiency oil removal:
The filter material adopts ultra-micro fiber, 3 grades of centrifugal, pre-filter & ultra-efficiency filter. It can remove oil, water and dust more thoroughly so as to gain more cleaning compressed air. Precision to be 0.1μm, oil content less than 0.1mg/m3.

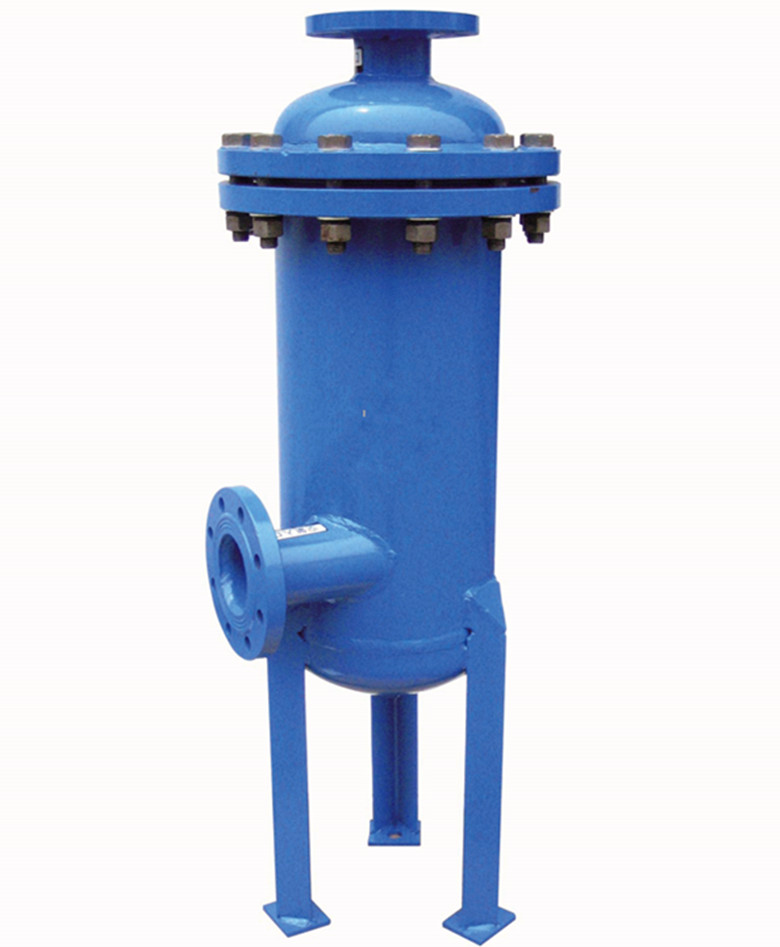

Oil water separator:
Its internal is made of steel net foam while the housing is made of carbon steel. 1.0MPa pressure in general. Oil water separator adopts direct head off, inertial hit and Brown diffusion and condenser, it can remove dust, water and oil efficiently from the compressed air. It can be used widely due to the advantages of removing high capacity of water&oil.
| After-cooler, High efficiency oil removal, Oil water separator | |||
Capacity | After-chiller Model | High Efficiency Oil Removal Model | Oil Water Separator Model |
1.2(42) | HSD-1W | HMR-001 | HMS-001 |
2.4(85) | HSD-2W | HMR-002 | HMS-002 |
3.8(132) | HSD-3W | HMR-003 | HMS-003 |
6.5(230) | HSD-6W | HMR-006 | HMS-006 |
11(388) | HSD-10W | HMR-010 | HMS-010 |
17(600) | HSD-15W | HMR-015 | HMS-015 |
23(800) | HSD-20W | HMR-020 | HMS-020 |
32(1250) | HSD-30W | HMR-030 | HMS-030 |
45(1580) | HSD-40W | HMR-040 | HMS-040 |
65(2295) | HSD-60W | HMR-060 | HMS-060 |
85(3000) | HSD-80W | HMR-080 | HMS-080 |
100(3530) | HSD-100W | HMR-100 | HMS-100 |
160(5650) | HSD-150W | HMR-150 | HMS-150 |
210(7415) | HSD-200W | HMR-200 | HMS-200 |
