DETAILS

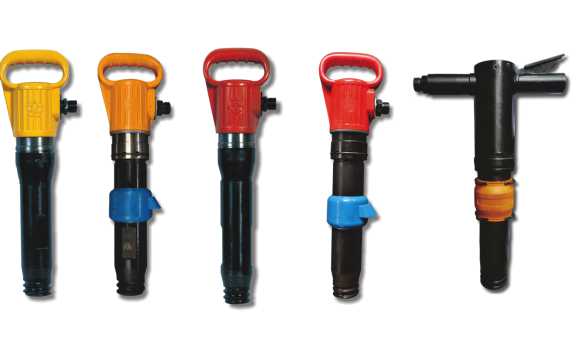

Pneumatic Pick Hammer
Model | Working Pressure | Air Consumption | Length | N.W | G.W | Dimension | ||
Mpa | Bar | m3/min | cfm | mm | kg | KG | (L*W*H)(mm) | |
HG10 | 0.5 | 5 | 1.2 | 42 | 570 | 10 | 11 | 570×180×110 |
HG15 | 0.5 | 5 | 1.4 | 49 | 600 | 11 | 12 | 570×180×110 |

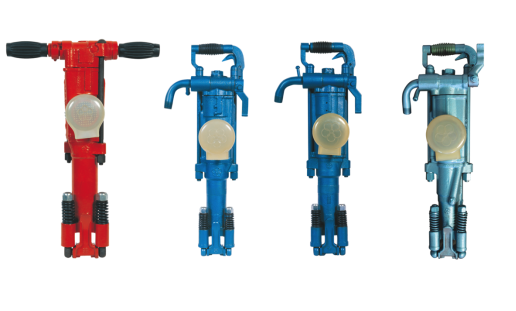

Pneumatic Rock Drill
Model | Cylinder Dia | Stroke | Working Pressure | Air Consumption | Drill Rod | N.W | G.W | Dimension | |
mm | mm | Bar | m3/min | cfm | mm | kg | kg | (L*W*H)(mm) | |
HY18 | 58 | 50 | 4 | 1.4 | 49 | B22x108 | 17 | 21 | 590×280×180 |
HY20 | 64 | 52 | 4 | 1.7 | 60 | B22x108 | 18 | 21 | 590×280×180 |
YT24 | 70 | 70 | 5 | 2.8 | 99 | B22x108 | 24 | 27 | 740×310×220 |
