◇Dry oil free air compressor
Oil free screw air compressor are widely used in industries that require high quality air sources such as: pharmaceutical, medical industry, food and chemical industry, electronic and electric industry, paper making and textile industry, steel and petrochemical industry, etc. 100% pure compressed air is a necessary procedure to guarantee satisfactory crafts and product quality, which ensures the production of high-end products safely and risk-free.
CLASS | (suspended particle, residual oil) mg/m3 Current Grade Standard: ISO 8573-1 (2010) |

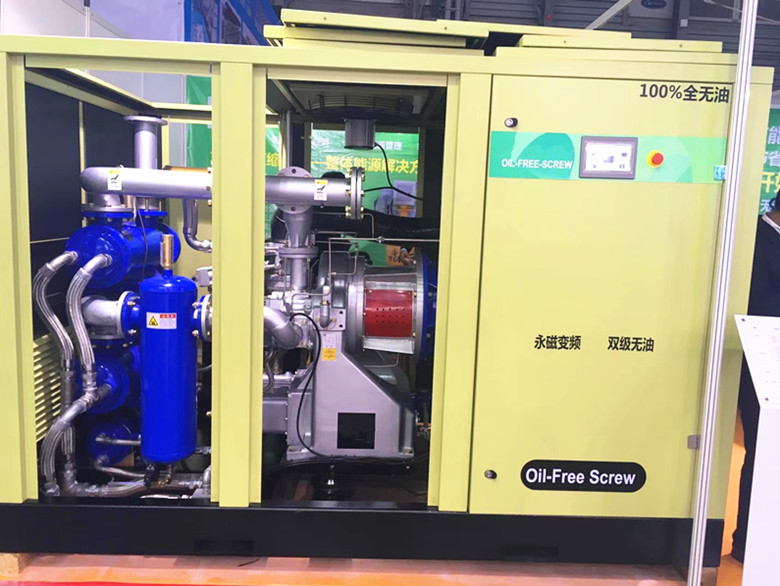

Two compression air end of dry oil free compressor |
0 | OUR MACHINE | |
1 | <0.01 | |
2 | <0.1 | |
3 | <1 | |
4 |
<5 |
Technical Parameters:
Dry oil free screw air compressor (cooling method: air cooling) | |||||
Model | Motor Power (kw/hp) | Pressure (bar) | Air Flow (m3/min) | Dimension (mm) | Weight (kg) |
OFA55-7.5 |
55/75 | 7.5 | 8.7 | 2140*1376*2150 | 2520 |
OFA55-8.6 | 8.6 | 7.9 | |||
OFA55-10 | 10 | 7.3 | |||
OFA75-7.5 |
75/100 | 7.5 | 11.9 | 2140*1376*2150 | 2600 |
OFA75-8.6 | 8.6 | 11.2 | |||
OFA75-10 | 10 | 10.7 | |||
OFA90-7.5 |
90/125 | 7.5 | 14.3 | 2140*1376*2150 | 2650 |
OFA90-8.6 | 8.6 | 13.5 | |||
OFA90-10 | 10 | 12.7 | |||
OFA110-7.5 |
110/150 | 7.5 | 18.4 | 4040*1662*2008 | 4070 |
OFA110-8.6 | 8.6 | 17.2 | |||
OFA110-10 | 10 | 16.0 | |||
OFA132-7.5 |
132/180 | 7.5 | 21.8 | 4040*1662*2008 | 4210 |
OFA132-8.6 | 8.6 | 19.5 | |||
OFA132-10 | 10 | 18.8 | |||
OFA145-7.5 |
145/200 | 7.5 | 23.2 | 4040*1662*2008 | 4360 |
OFA145-8.6 | 8.6 | 21.5 | |||
OFA145-10 | 10 | 19.9 | |||
OFA160-7.5 |
160/215 | 7.5 | 27.9 | 5040*1662*2108 | 6350 |
OFA160-8.6 | 8.6 | 25.7 | |||
OFA160-10 | 10 | 23.8 | |||
OFA200-7.5 |
200/270 | 7.5 | 34.1 | 5040*1662*2108 | 6450 |
OFA200-8.6 | 8.6 | 31.3 | |||
OFA200-10 | 10 | 30.0 | |||
OFA250-7.5 |
250/340 | 7.5 | 42.4 | 5040*1662*2108 | 6500 |
OFA250-8.6 | 8.6 | 40.4 | |||
OFA250-10 | 10 | 36.8 | |||
OFA275-7.5 |
275/350 | 7.5 | 44.3 | 5040*1662*2108 | 6600 |
OFA275-8.6 | 8.6 | 42.4 | |||
OFA275-10 | 10 | 40.4 | |||
Dry oil free screw air compressor (cooling method: water cooling) | |||||
Model | Motor Power (kw/hp) | Pressure (bar) | Air Flow (m3/min) | Dimension (mm) | Weight (kg) |
OFW55-7.5 |
55/75 | 7.5 | 8.7 | 2140*1376*1900 | 1800 |
OFW55-8.6 | 8.6 | 7.9 | |||
OFW55-10 | 10 | 7.3 | |||
OFW75-7.5 |
75/100 | 7.5 | 11.9 | 2140*1376*1900 | 1890 |
OFW75-8.6 | 8.6 | 11.2 | |||
OFW75-10 | 10 | 10.7 | |||
OFW90-7.5 |
90/125 | 7.5 | 14.3 | 2140*1376*1900 | 1925 |
OFW90-8.6 | 8.6 | 13.5 | |||
OFW90-10 | 10 | 12.7 | |||
OFW110-7.5 |
110/150 | 7.5 | 19.1 | 2540*1662*2008 | 2635 |
OFW110-8.6 | 8.6 | 17.1 | |||
OFW110-10 | 10 | 16.0 | |||
OFW132-7.5 |
132/180 | 7.5 | 21.9 | 2540*1662*2008 | 2760 |
OFW132-8.6 | 8.6 | 19.6 | |||
OFW132-10 | 10 | 18.9 | |||
OFW145-7.5 |
145/200 | 7.5 | 23.5 | 2540*1662*2008 | 2900 |
OFW145-8.6 | 8.6 | 21.7 | |||
OFW145-10 | 10 | 20.1 | |||
OFW145-13 | 13 | 18.2 | |||
OFW160-7.5 |
160/215 | 7.5 | 28.3 | 3140*1662*2008 | 3850 |
OFW160-8.6 | 8.6 | 26.1 | |||
OFW160-10 | 10 | 24.2 | |||
OFW200-7.5 |
200/270 | 7.5 | 36.1 | 3140*1662*2008 | 4000 |
OFW200-8.5 | 8.5 | 33.1 | |||
OFW200-10 | 10 | 30.4 | |||
OFW250-7.5 |
250/340 | 7.5 | 43.1 | 3140*1662*2008 | 4100 |
OFW250-8.5 | 8.5 | 41.0 | |||
OFW250-10 | 10 | 37.4 | |||
OFW250-13 | 13 | 30.9 | |||
OFW275-7.5 |
275/350 | 7.5 | 46.4 | 3140*1662*2008 | 4300 |
OFW275-8.5 | 8.5 | 43.0 | |||
OFW275-10 | 10 | 41.0 | |||
OFW275-13 | 13 | 33.7 | |||
Dry oil free variable speed screw air compressor (cooling method: air cooling) | |||||
Model | Motor (kw) | Pressure (bar) | Air Flow (m3/min) | Dimension (mm) | Weight (kg) |
OFA75VSD-9 |
75 | 9 | 4.5-13.0 | 2549*1376*2150 | 2630 |
OFA75VSD-10.4 | 10.4 | 5.7-11.8 | |||
OFA90VSD-9 |
90 | 9 | 4.5-15.4 | 2549*1376*2150 | 2700 |
OFA90VSD-10.4 | 10.4 | 5.7-13.9 | |||
OFA132VSD-8.6 |
132 | 8.6 | 7.6-21.8 | 4040*1662*2008 | 4300 |
OFA132VSD-10.4 | 10.4 | 11.9-19.8 | |||
OFA160VSD-8.6 |
160 | 8.6 | 7.6-24.0 | 4040*1662*2008 | 4300 |
OFA160VSD-10.4 | 10.4 | 11.9-22.2 | |||
OFA250VSD-8.6 |
250 | 8.6 | 14.2-41.8 | 5040*1662*2112 | 6950 |
OFA250VSD-10.4 | 10.4 | 25.0-38.3 | |||
OFA315VSD-8.6 |
315 | 8.6 | 14.2-45.0 | 5040*1662*2112 | 6950 |
OFA315VSD-10.4 | 10.4 | 25.0-41.3 | |||
Dry oil free variable speed screw air compressor (cooling method: water cooling) | |||||
Model | Motor (kw) | Pressure (bar) | Air Flow (m3/min) | Dimension (mm) | Weight (kg) |
OFW75VSD-9 |
75 | 9 | 4.5-13.2 | 2549*1376*1900 | 1925 |
OFW75VSD-10.4 | 10.4 | 5.7-11.9 | |||
OFW90VSD-9 |
90 | 9 | 4.5-15.5 | 2549*1376*1900 | 1970 |
OFW90VSD-10.4 | 10.4 | 5.7-13.9 | |||
OFW132VSD-8.6 |
132 | 8.6 | 7.7-22.4 | 2540*1662*2008 | 2870 |
OFW132VSD-10.4 | 10.4 | 8.2-20.2 | |||
OFW160VSD-8.6 |
160 | 8.6 | 7.7-24.9 | 2540*1662*2008 | 2870 |
OFW160VSD-10.4 | 10.4 | 8.2-23.0 | |||
OFW250VSD-8.6 |
250 | 8.6 | 14.5-42.9 | 3140*1662*2008 | 4600 |
OFW250VSD-10.4 | 10.4 | 19.3-38.4 | |||
OFW315VSD-8.6 |
315 | 8.6 | 14.5-47.3 | 3140*1662*2008 | 4600 |
OFW315VSD-10.4 | 10.4 | 19.3-42.0 | |||
