DETAILS

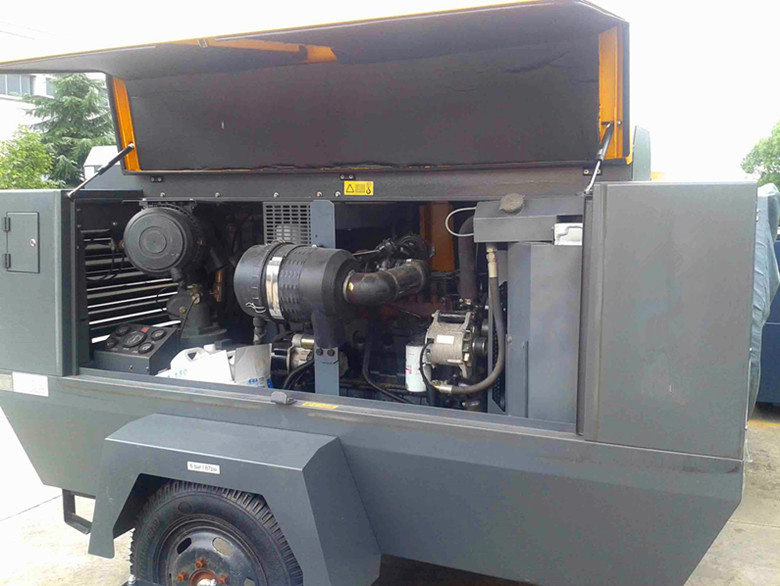

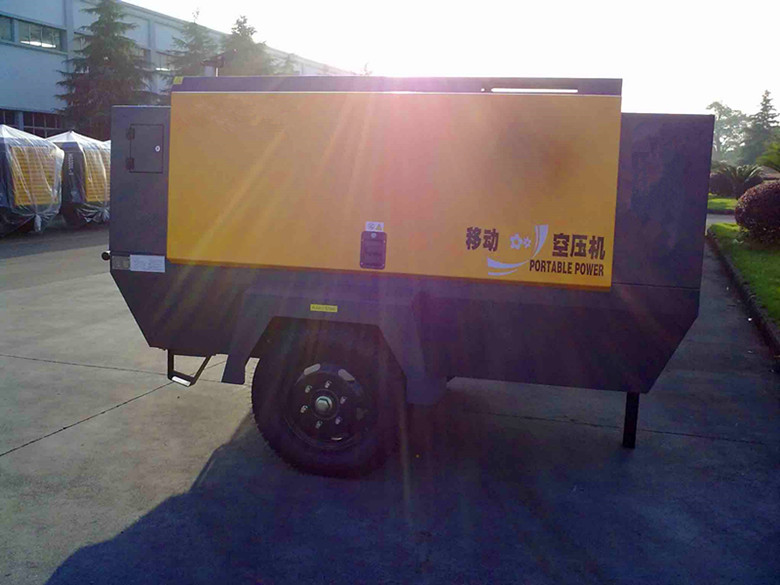

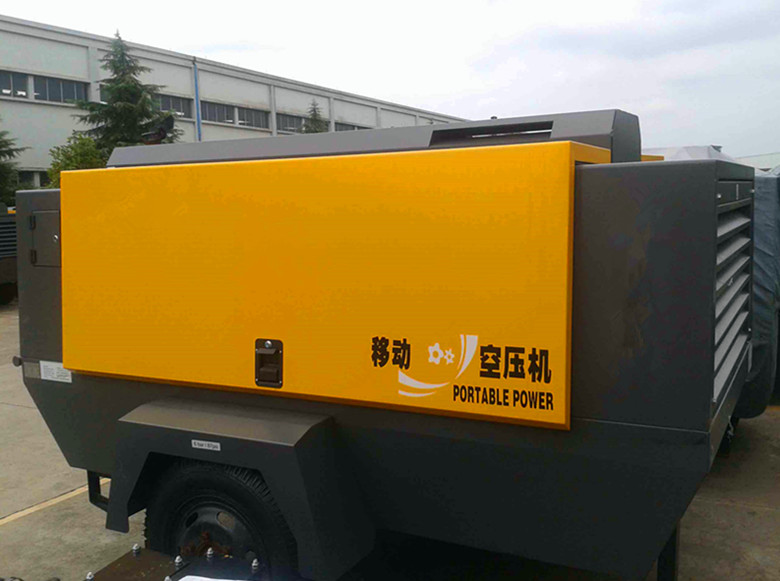

◇diesel driven portable screw air compressor
For mining and drilling rig
Technical Parameters:
Engine Power (kw/hp) | Engine Model Engine Brand | Pressure (mpa/psig) | Capacity (m3/min)/cfm |
31/41 | WP2.5G42E2 WEICHAI/CHINA | 0.8/116 | 4.5/160 |
48/64 | WP3.9G65E2 WEICHAI/CHINA | 0.8/116 | 5.3/188 |
84/112 | B9V05 YUCHAI/CHINA | 1.0/145 | 8.5/300 |
84/112 | B9V05 YUCHAI/CHINA | 0.8/116 | 10/353 |
110/150 | 6BT5.9-C150 CUMMINS | 1.3/189 | 10/353 |
110/150 | 6BT5.9-C150 CUMMINS | 0.8/116 | 12.7/448 |
110/150 | 6BT5.9-C150 CUMMINS | 1.0/145 | 12/423 |
132/176 | 6BTA5.9 CUMMINS | 13/189 | 15.5/546 |
132/176 | 6BTA5.9 CUMMINS | 0.8/116 | 17/599 |
118/157 | EQ6BT5.9 CUMMINS | 1.3/189 | 12/423 |
194/259 | 6CTA8.3 CUMMINS | 1.4/203 | 22.5/793 |
264/352 | 6LTAA8.9-C360 CUMMINS | 2.0/300 | 27/952 |
264/352 | 6LTAA8.9-C360 CUMMINS | 1.4/203 | 30/1057 |
