DETAILS

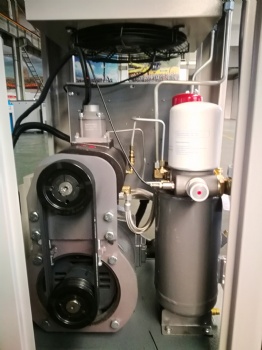

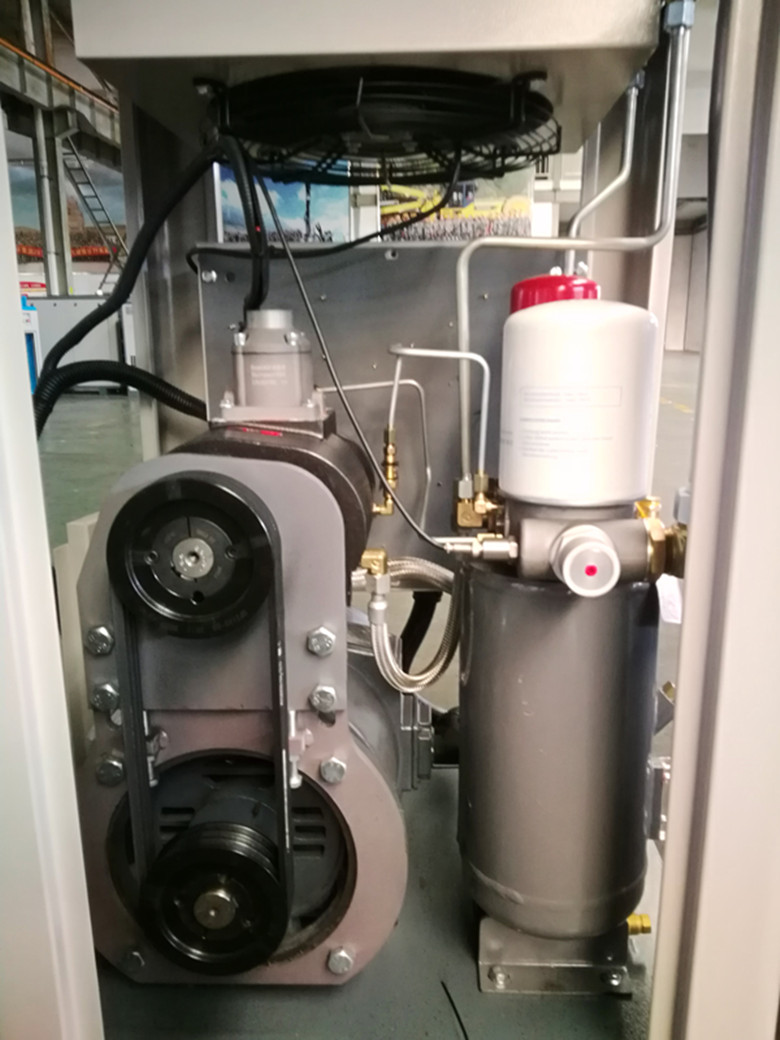

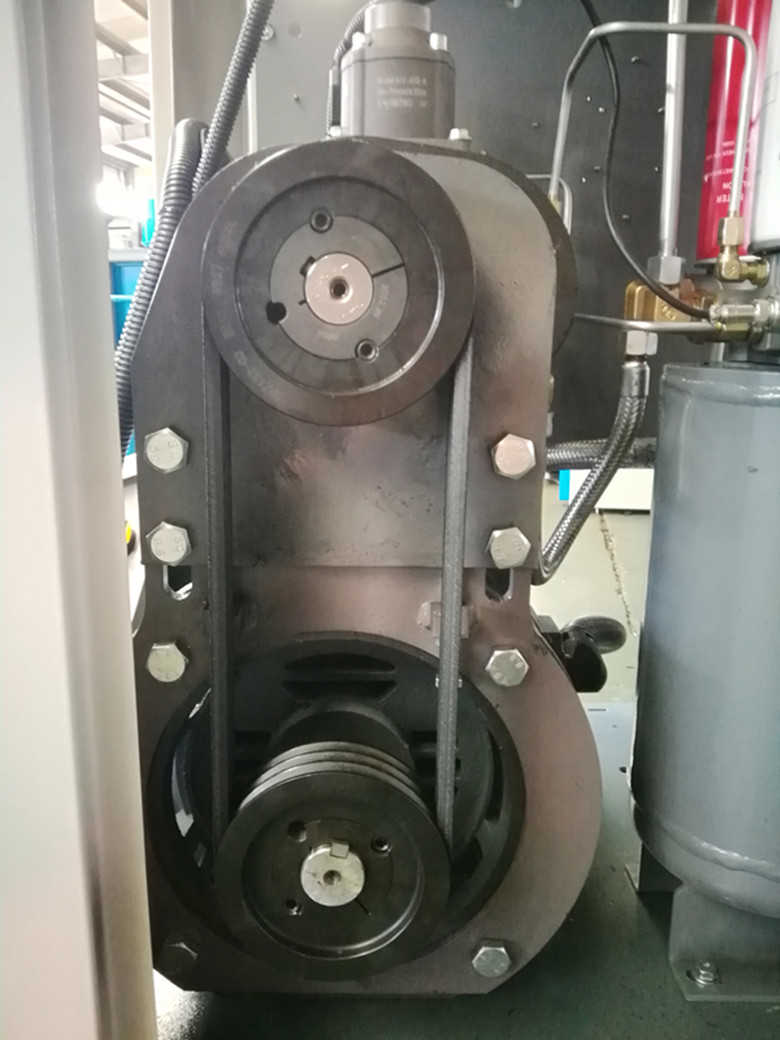

◇Belt Driven Screw Air Compressor
Technical Parameters:
Model | Motor Power (kw/hp) | Pressure (bar) | Capacity (m3/min) | Outlet Inch | Dimension (mm) | Weight (kg) |
SCB-7A |
7.5/10 | 8 | 1.15 |
G3/4’’ |
560*630*1075 |
210 |
10 | 0.9 | |||||
12 | 0.8 | |||||
SCB-11A |
11/15 | 8 | 1.75 |
G3/4’’ |
650*720*1180 |
330 |
10 | 1.55 | |||||
12 | 1.43 | |||||
SCB-15A |
15/20 | 8 | 2.25 |
G1’’ |
650*720*1180 |
350 |
10 | 2.05 | |||||
12 | 1.85 |
Note: 1. air cooling; 2. belt driven
