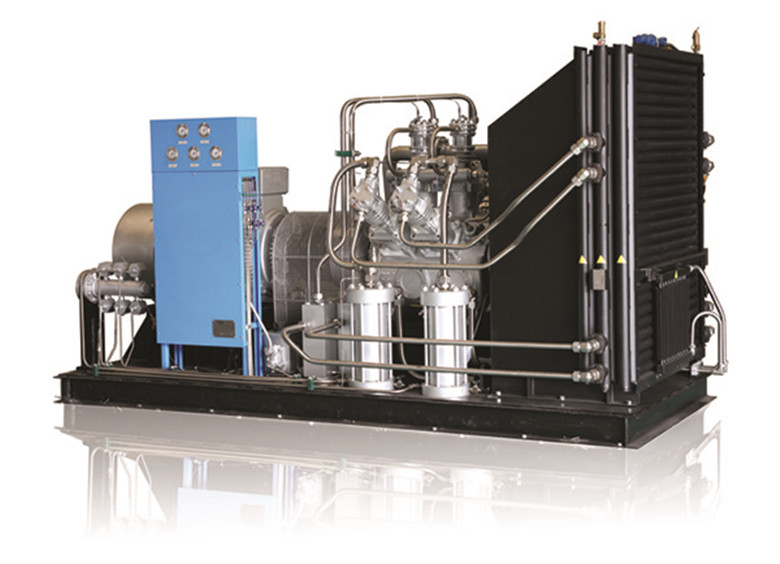

High Pressure Piston Air Compressor (can up to 35bar)

Product Introduction

Working Pressure:
Maximum working pressure can reach 35bar.

Compress:
Tiny-oil lubrication, two-stage compress

Characteristics:
We adopt EPC intelligent control system, and the inlet valve within it will regulate the air intake automatically, and control the venting pressure and temperature rising according to the requirement of the system. EPC intelligent control system can also integrate compressors as many as 16 sets together, the main operate machine can switch automatically among different kinds of compressors to guarantee a same workload of every compressor.

Advantages of two-stage screw air compressor:
The rotor was processed through more than 20 procedures, which guarantees the accuracy, reliability, and effectiveness of the rotor profile.
The replacement of the one-stage by two-stage can reach the pressure required and achieve energy-saving effect by 15% more.
The pressure ratio is reduced in every compressor stage, which will reduce the bearing load and expand the life of the host machine.
The Coolant spray curtain design allows the gas which is cooled by the spraying coolant after the first-stage compressor to the second-stage compressor directly, and this process will omit the intercooler, thus largely reduce the power consumption and the maintenance cost.

Main technical parameters:

Solution for combination between screw air compressor and high pressure piston air compressor
Working Pressure: Maximum can reach 600 bar
Compress: tiny-oil or oil-free compress. Multi-stage compress can up to six stages and 3 pairs double-acting piston cylinders.

Characteristics
Real air compressor with zero oil leakage
High efficient cooling system brings low discharging temperature.
Automatic intelligent control system can be easily controlled and can achieve unattended operation
Advanced design optimized cylinder and compress level according to inlet air flow
Combined system between screw air compressor and high pressure piston air compressor
Combine screw air compressor with high pressure piston air compressor, whose air end and motor can be placed together on the steel structured base, which is convenient for rigid connection of the devices.
Air compressor unit control system uses chain control system and central monitor system, and they are used in chain-control of various unit devices; they can also concentrate remote monitor and control, and show running status of each air compressor in real time.

Main technical parameters:
