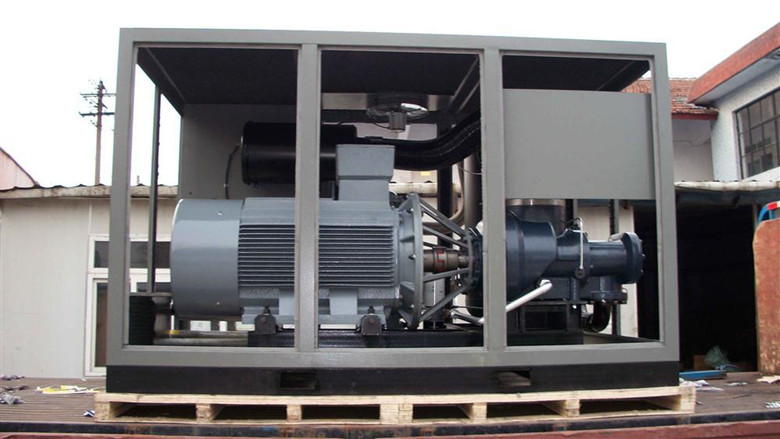

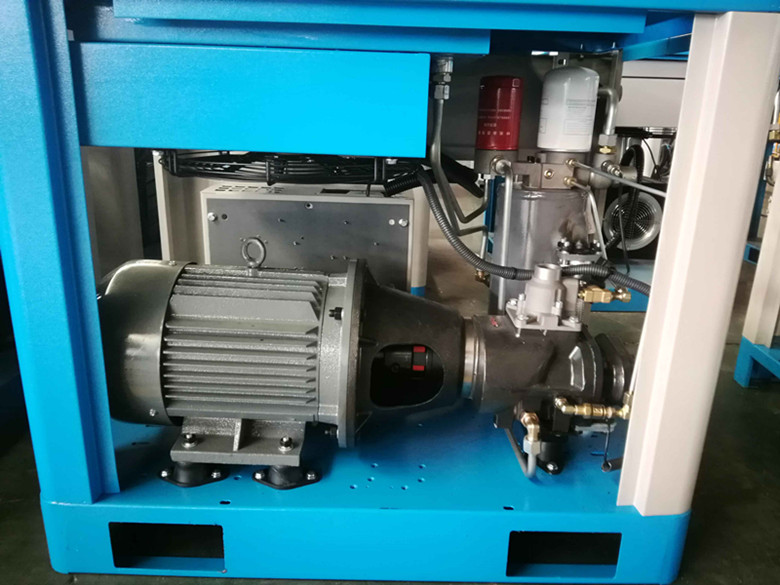

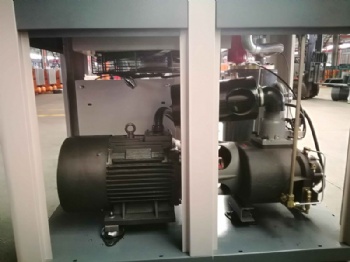

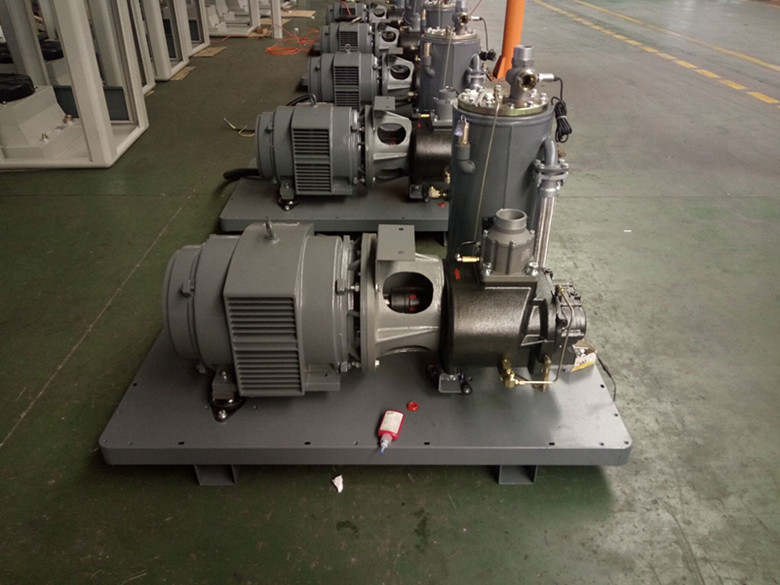

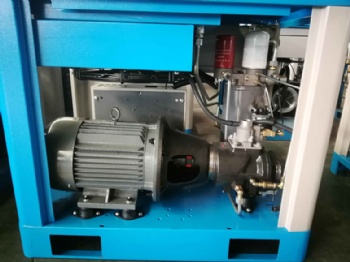

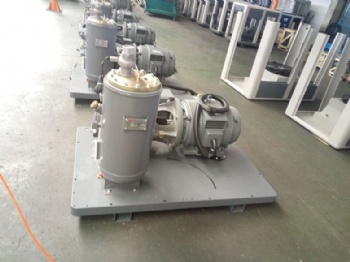

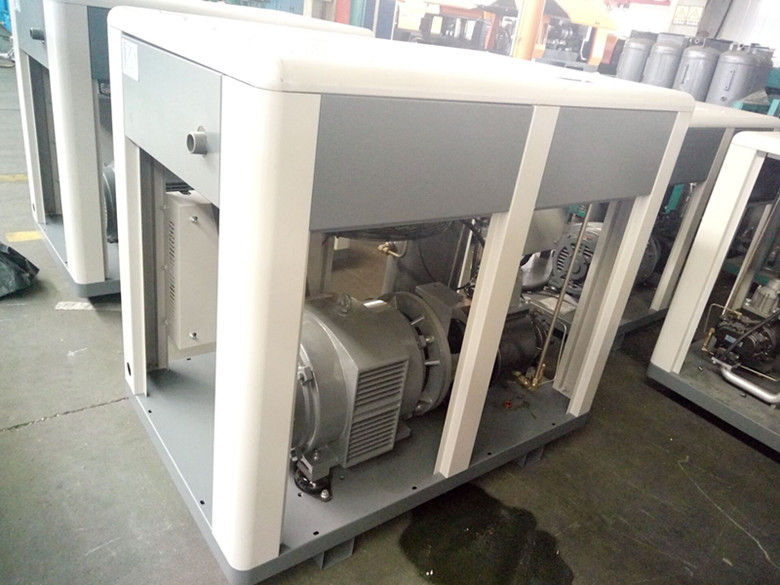

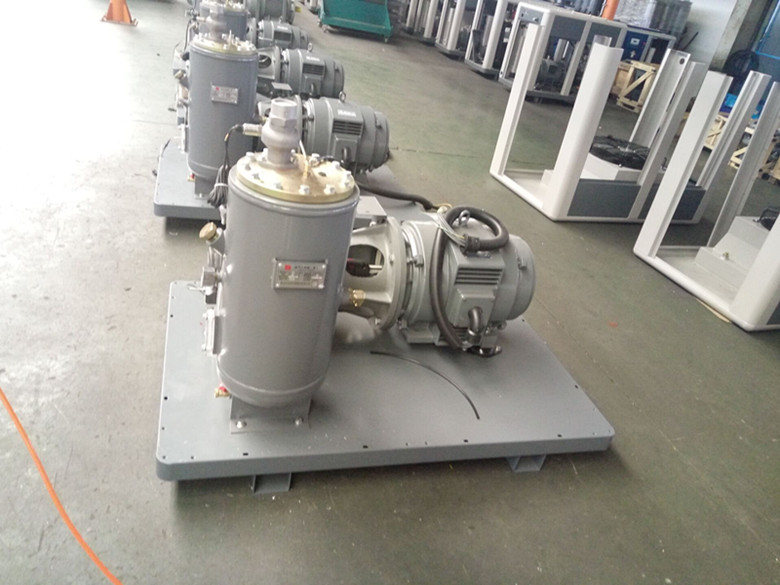

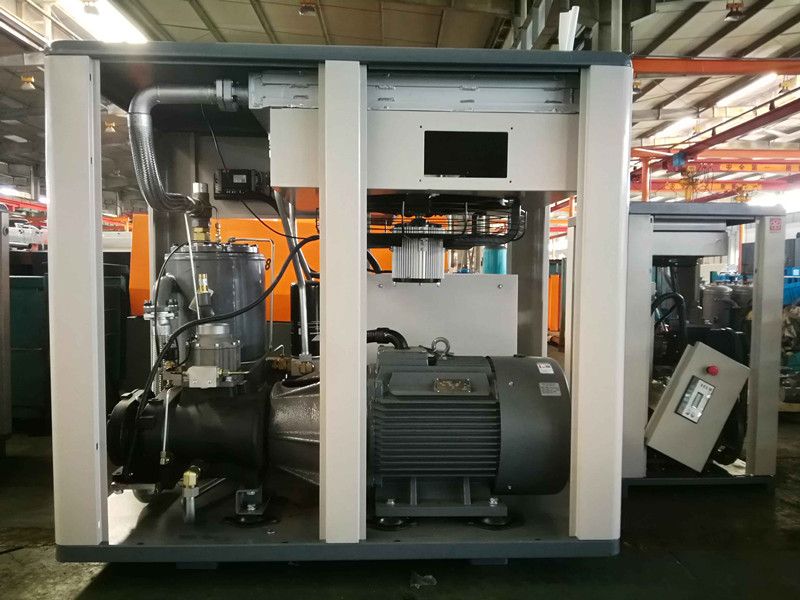

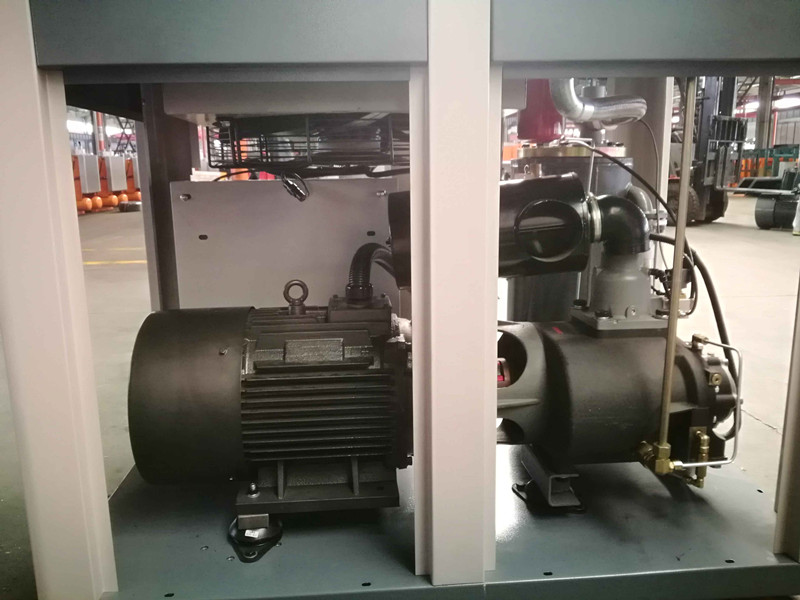

◇direct driven screw air compressor (7.5kw-280kw) air cooling

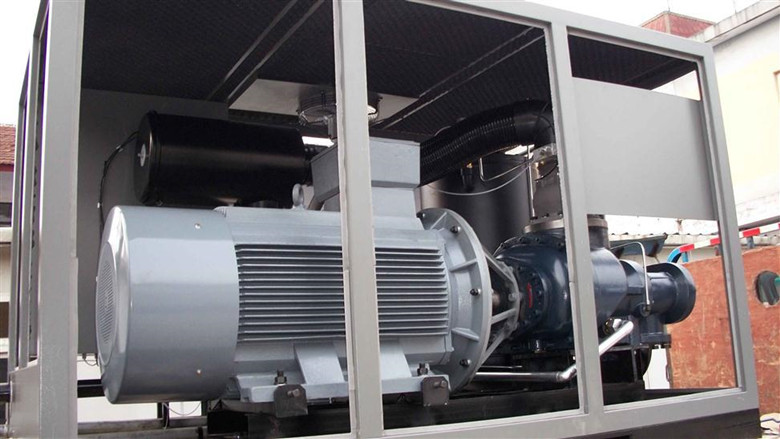

◇direct driven screw air compressor (90kw-630kw) water cooling
Performance Features:
★high volumetric efficiency screw air end built by famous brand, with new profile 5/6 lobe relation
★Intelligent microprocessor control system, display information on control panel:
exhaust pressure and temperature, running time, current of motor, state of load/unload, using and replacing time for lubricant, air filter, oil filter and oil separator;
★Safety Indicating Device: safety valve, exhaust high temperature protection, exhaust high pressure protection, over current protection, less phase protection, reversed phase protection;
★Integrated oil separation system, with minimum pressure valve, thermostatic valve, safety valve;
★Cooler control method: variable frequency constant temperature control;
Big air/oil after cooler can be used in high temperature environment;
★Full sound enclosure with dual filtration;
★Synthesized lubricant, long life 4000 hours.
Technical Parameters:
Model | Motor Power (kw/hp) | Pressure (bar) | Air Flow (m3/min) | Outlet Inch | Dimension (mm) | Weight (kg) |
SCD-7.5A | 7.5/10 | 8 | 1.15 | G3/4’’ | 680*760*890 | 210 |
SCD-11A | 11/15 | 8 | 1.65 | G3/4’’ | 860*860*1010 | 330 |
SCD-15A | 15/20 | 8 | 2.3 | G1’’ | 860*860*1010 | 350 |
SCD-22A | 22/30 | 8 | 3.6 | G1’’ | 1320*800*1270 | 550 |
SCD-37A | 37/50 | 8 | 6.1 | G1 1/2’’ | 1530*920*1440 | 750 |
SCD-55A | 55/75 | 8 | 10.2 | G2’’ | 1800*1030*1500 | 1300 |
SCD-75A | 75/100 | 8 | 13.5 | G2’’ | 1880*1100*1600 | 1600 |
SCD-90A/W |
90/125 | 7/8 | 16.6 |
DN80 | 2592*1600*1825 |
2250 |
9/10 | 13.9 | |||||
12/13 | 11.1 | |||||
SCD-110A/W |
110/150 | 7/8 | 21 |
DN80 | 2592*1600*1825 |
2350 |
9/10 | 16.6 | |||||
12/13 | 13.5 | |||||
SCD-132A/W |
132/180 | 7/8 | 24 |
DN80 | 2592*1600*1825 |
2400 |
9/10 | 21 | |||||
12/13 | 16.6 | |||||
SCD-160A/W |
160/215 | 7/8 | 28 |
DN80 | 2992*1600*1945 |
3050 |
9/10 | 24 | |||||
12/13 | 21 | |||||
SCD-185A/W |
185/250 | 7/8 | 32.5 |
DN80 | 2992*1600*1945 |
3050 |
9/10 | 28 | |||||
12/13 | 24 | |||||
SCD-200A/W |
200/270 | 7/8 | 35 |
DN80 | 2992*1600*1945 |
3050 |
9/10 | 30 | |||||
12/13 | 26 | |||||
SCD-250A/W |
250/340 | 7/8 | 45 |
DN100 | 3700*1900*1950 |
4500 |
9/10 | 37 | |||||
12/13 | 33 | |||||
SCD-280W |
280/380 | 7/8 | 50 |
DN100 | 3700*1900*1950 |
4800 |
9/10 | 42 | |||||
12/13 | 37 | |||||
SCD-315W |
315/420 | 7/8 | 56 |
DN100 | 3700*1900*1950 |
5200 |
9/10 | 49 | |||||
12/13 | 42 | |||||
SCD-355W |
355/475 | 7/8 | 62 |
DN125 | 4240*2000*2100 |
7800 |
9/10 | 54 | |||||
12/13 | 46 | |||||
SCD-400W |
400/535 | 7/8 | 74 |
DN125 | 4240*2000*2100 |
8000 |
9/10 | 64 | |||||
12/13 | 54 | |||||
SCD-450W |
450/615 | 7/8 | 82 |
DN125 | 4240*2000*2100 |
8000 |
9/10 | 72 | |||||
12/13 | 61 | |||||
SCD-500W |
500/680 | 7/8 | 90 |
DN150 |
4720*2200*2300 |
9200 |
9/10 | 80 | |||||
12/13 | 68 | |||||
SCD-560W | 560/765 | 7/8 | 100 | DN150 | 4720*2200*2300 | 9200 |
9/10 | 86 | |||||
SCD-630W | 630/860 | 7/8 | 120 | DN150 | 4720*2200*2300 | 9200 |
9/10 | 100 |
