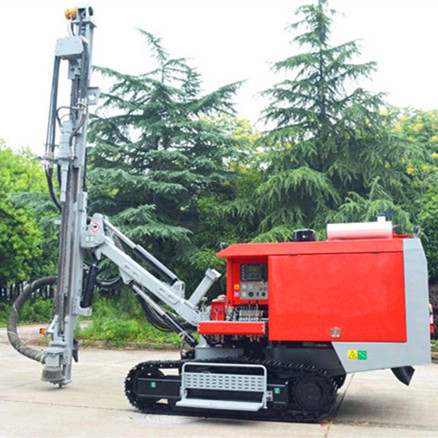

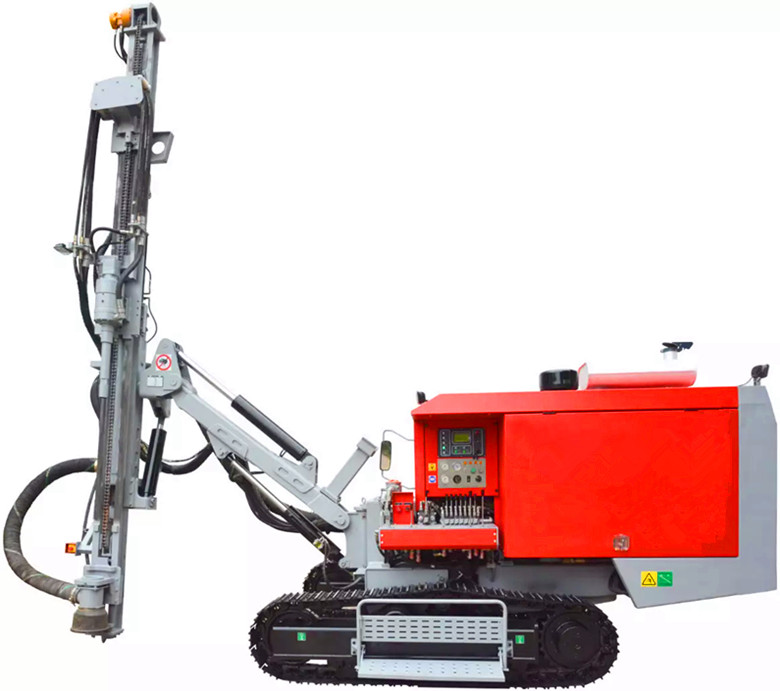

New Outdoors Down-hole Drill Rig Integrated with Atlas Copco Compressor
This machine combines the open-air DTH drill rig with Atlas Copco screw air compression system. It has compact structure, good integrity and easy movement.
The drilling rig has the characteristics of energy saving, high efficiency, safety and environmental protection, flexible mobility, easy operation, stable performance, etc. It is mainly suitable for open-air blasting drilling operations such as mining, quarrying, rational construction, water conservancy and electric power.
Bore Dia | 76-127mm |
Bore Depth | 30m |
Bore Rod Size | Φ68*3000; Φ76*3000mm |
Suitable Impactor | 4” |
Diesel Motor | Cummins (National III) |
Diesel Motor Power | 154kw, 2200r/min |
Screw Air Compressor Output | 12m3/min |
Max working pressure | 1.6Mpa |
Max torque of gyration head | 2000Nm |
Max speed of gyration head | 100rpm |
Pushing Stroke | 3700mm |
Walking Speed | 2-3km/h |
Climbing Capacity | 25° |
Ground Clearance | 350mm |
Weight | 9200kg |
Dimension (L*W*H) | 6800*2600*2400mm |

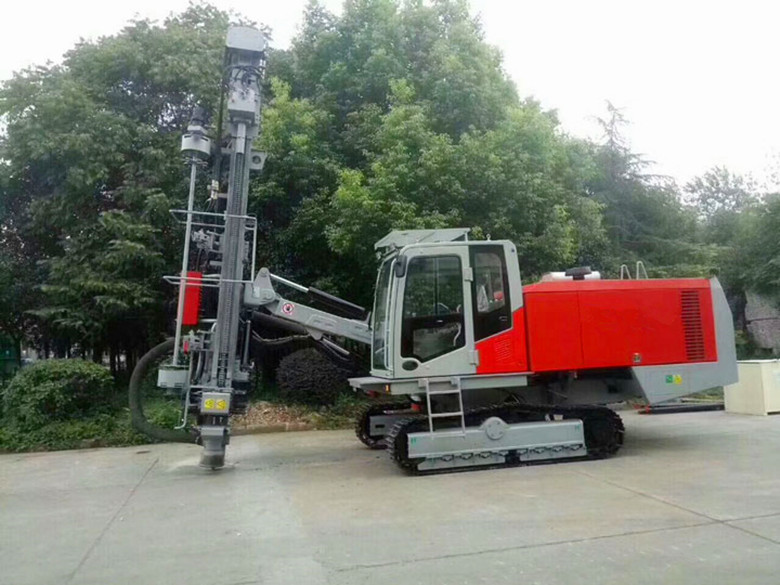

New Outdoors Down-hole Drill Rig Integrated with Atlas Copco Compressor
Mainly Application: quarry, opencast mining, open pit mine, surface mine, limestone mine etc.
| Bore Dia | 90-130mm |
Automatically Change Drill Rod Hole Depth | 21m |
Bore Rod Size | External Diameter Φ76*Length 3000mm |
Suitable Impactor | 3’’ 90-100mm or 4’’ 105-130mm |
Diesel Motor | Cummins 6LTAA8.9-C325 (National II/Stage II) |
Diesel Motor Power | 232kw, 1800r/min |
Operating Ambient Temperature | |
Screw Air Compressor Output | 225L/S, Atlas Copco compressor |
Max working pressure | 1.7Mpa |
Max torque of gyration head | 1640Nm |
Max speed of gyration head | 144rpm |
Pushing Stroke | 3330mm |
Max Lifting Force | 20kN |
Pushing Force | 17kN |
Pushing Compensation Length | 1000mm |
Walking Speed | 1.2~3.2km/h |
Crawler Frame Swing Angle | ±10° |
Ground Clearance | 370mm |
Weight | 14000kg |
Transportation Size | L 8969*H 3328mm |
