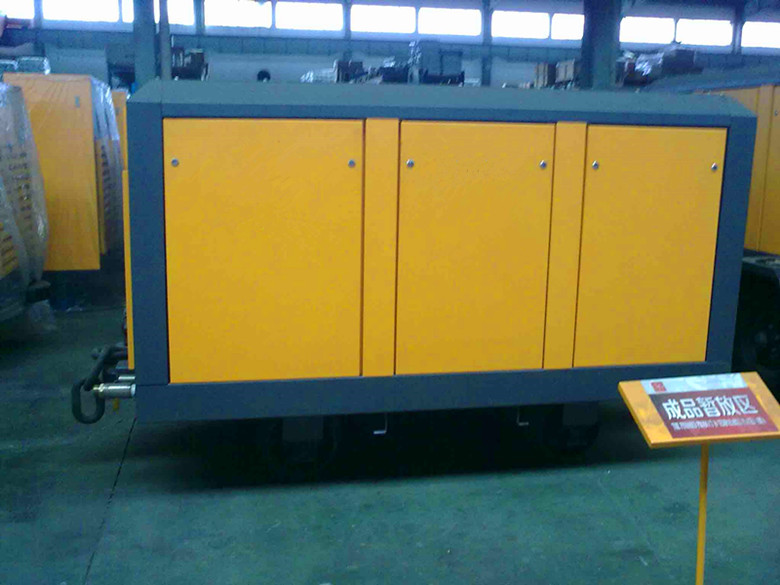

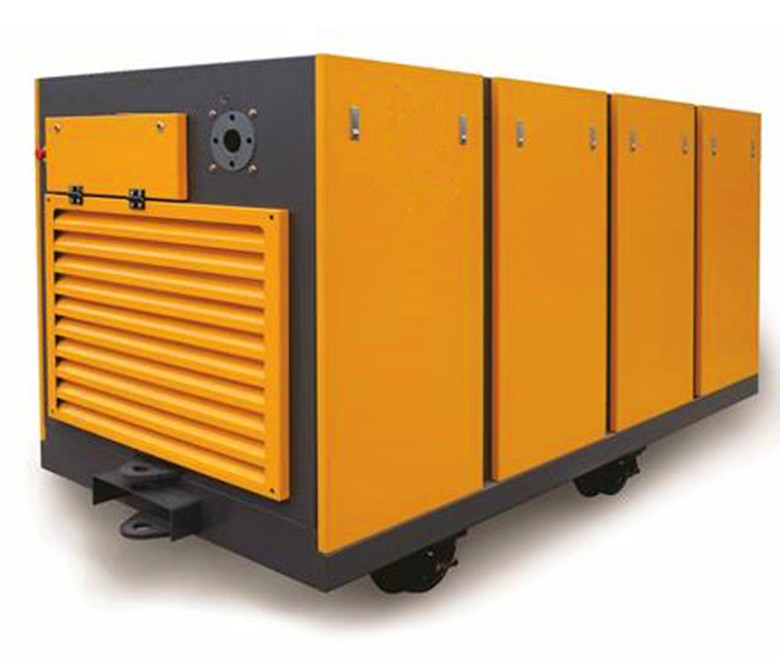

Explosion-proof Portable Screw Air Compressor for Coal Mining Application
Specially design for underground coal mine mining, matching with equipment for nitrogen making in coal mine
Air Flow (m3/min) | 6 | 10 | 13 | 16 | 12 | 20 | |
Discharge Pressure (bar) | 7 | 7 | 7 | 7 | 12.5 | 7 | |
Main Motor | Motor Model | YBK2-200L2-2 | YBK2-250M2-2 | YBK2-280S-2 | YBK2-280M-2 | YBK2-280M-2 | YBK2-315S-2 |
Motor Power | 37kw | 55kw | 75kw | 90kw | 90kw | 110kw | |
Motor Voltage | 380/660 | ||||||
Starting Power | 68A/39A | 100A/58A | 134A/77A | 160A/92A | 160A/92A | 203A/112A | |
Insulation Grade | F | ||||||
Cooling Fan | Motor Model | YBK2-100L-6 | YBK2-100L-6 | YBK2-100L-6 | YBK2-112M-6 | YBK2-112M-6 | YBK2-132S-6 |
Motor Power | 1.5kw | 1.5kw | 1.5kw | 2.2kw | 2.2kw | 3kw | |
Motor Voltage | 380/660 | ||||||
Starting Power | 4.1A/2.3A | 5.6kw | |||||
Length (mm) | 2560 | 2720 | 2880 | 3110 | 3110 | 3740 | |
Width (mm) | 1040 | 1140 | 1200 | 1270 | 1270 | 1310 | |
Height (mm) | 1450 | 1590 | 1590 | 1700 | 1700 | 1770 | |
Net Weight (kg) | 1700 | 2100 | 2450 | 2850 | 2650 | 3550 | |
Air Flow (m3/min) | 21 | 17 | 25 | 21 | 25 | 30 | |
Discharge Pressure (bar) | 7 | 12.5 | 8 | 12.5 | 12.5 | 12.5 | |
Main Motor | Motor Model | YBK2-315M-2 | YBK2-315M-2 | YBK2-315L2-2 | YBK2-315L2-2 | YBK2-315L2-2 | YBK2-355M1-2 |
Motor Power | 132kw | 132kw | 160kw | 160kw | 185kw | 220kw | |
Motor Voltage | 380/660 | 660/1140 | |||||
Starting Power | 230A/135A | 230A/135A | 282A/163A | 282A/163A | 192A/110A | 220A/127A | |
Insulation Grade | F | ||||||
Cooling Fan | Motor Model | YBK-132S-6 | YBK-132S-6 | YBK2-132M2-6 | YBK2-132M2-6 | YBK2-132M2-6 | YBK2-132M2-6 |
Motor Power | 3kw | 3kw | 5.5kw | 5.5kw | 5.5kw | 5.5kw | |
Motor Voltage | 380/660 | 660/1140 | |||||
Starting Power | 7.3A/4.2A | 7.3A/4.2A | 12.6A/7.3A | 12.6A/7.3A | 7.3A/4.2A | 7.3A/4.2A | |
Length (mm) | 3740 | 3740 | 3850 | 3850 | 3850 | 4150 | |
Width (mm) | 1310 | 1310 | 1370 | 1370 | 1370 | 1450 | |
Height (mm) | 1770 | 1770 | 1850 | 1850 | 1850 | 1950 | |
Net Weight (kg) | 3850 | 3850 | 4500 | 4500 | 4850 | 5500 | |
