Energy efficient
Low pressure screw air compressor, which design for textile, cement and glass light those air needed industry, whose exhaust pressure is around 2-5bar. The minimum pressure can reach 1.5bar.
Designed for low pressure, debase exhaust pressure resistance and keep high performance.
Oil pump lubricate compulsorily and make sure that air compressor can have enough oil injection under low pressure and keep optimal oil gas mixing ratio.
Characteristics

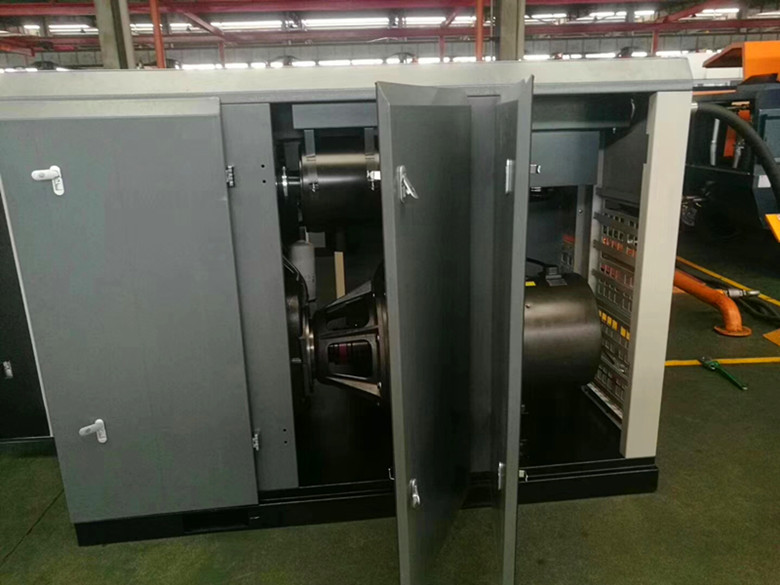

Four stage motor in direct connection, adopt big rotor, with low rotary speed, maintain high efficiency.
It can enlarge oil gas separator, which make sure oil contamination is between 2 to 3 ppm.
It can enlarge more than 30% oil cooler area, which can be run in normal status and not work over temperature in summer.
Air end and pressure ratio is separately designed to maintain optimal ratio power.
EPC intelligent control system can auto-adjust air flow according to different customer needs.
◇Low pressure direct driven screw air compressor (3-5bar, air cooling)
Model | Motor Power (kw/hp) | Pressure (bar) | Air Flow (m3/min) | Outlet Inch | Dimension (mm) | Weight (kg) |
LP22-3 | 22/30 | 3 | 6.6 | G1-1/2” | 1800*1100*1300 | 2000 |
LP37-3 | 37/50 | 3 | 11 | G2” | 1988*1300*1520 | 2250 |
LP55-3 | 55/75 | 3 | 18.5 | DN65 | 2210*1450*1820 | 3000 |
LP75-3 | 75/100 | 3 | 23 | DN80 | 2210*1450*1820 | 3500 |
LP90-3 | 90/125 | 3 | 26 | DN80 | 2300*1550*1900 | 3500 |
LP110-3 | 110/150 | 3 | 30 | DN123 | 3300*2200*2300 | 3900 |
LP132-3 | 132/180 | 3 | 40 | DN125 | 3070*1845*2110 | 3200 |
LP22-4 | 22/30 | 4 | 5 | G1-1/2” | 1800*1100*1300 | 2000 |
LP37-4 | 37/50 | 4 | 6.6 | G1-1/2” | 1800*1100*1300 | 2250 |
LP45-4 | 45/60 | 4 | 11 | G2” | 1988*1300*1520 | 2500 |
LP55-4 | 55/75 | 4 | 13 | DN65 | 1988*1300*1520 | 2650 |
LP75-4 | 75/100 | 4 | 18.41 | DN65 | 2210*1450*1820 | 2850 |
LP90-4 | 90/125 | 4 | 23 | DN80 | 2300*1550*3000 | 3000 |
LP30-5 | 30/40 | 5 | 6.2 | DN65 | 2000*1310*1520 | 2250 |
LP55-5 | 55/75 | 5 | 13 | DN65 | 2210*1450*1820 | 2500 |
LP75-5 | 75/100 | 5 | 18.5 | DN80 | 2300*1550*1900 | 2600 |
LP90-5 | 90/125 | 5 | 21 | DN80 | 2300*1550*1900 | 3000 |
LP110-5 | 110/150 | 5 | 25 | DN100 | 2415*1555*1810 | 2650 |
LP132-5 | 132/180 | 5 | 30 | DN125 | 3070*1845*2110 | 3250 |
LP160-5 | 160/215 | 5 | 42 | DN125 | 3790*1900*2250 | 4200 |
◇Low pressure direct driven screw air compressor (3-5bar, water cooling)
Model | Motor Power (kw/hp) | Pressure (bar) | Air Flow (m3/min) | Outlet Inch | Dimension (mm) | Weight (kg) |
LP55W-3 | 55/75 | 3 | 17.5 | DN80 | 1970*1230*1565 | 2100 |
LP75W-3 | 75/100 | 3 | 22.5 | DN100 | 2415*1555*1810 | 2300 |
LP90W-3 | 90/125 | 3 | 25 | DN100 | 2415*1555*1810 | 2500 |
LP110W-3 | 110/150 | 3 | 30 | DN125 | 3070*1845*2110 | 3200 |
LP132W-3 | 132/180 | 3 | 42 | DN125 | 3790*1900*2250 | 4200 |
LP75W-5 | 75/100 | 5 | 17.5 | DN80 | 1970*1230*1565 | 2150 |
LP90W-5 | 90/125 | 5 | 22.5 | DN100 | 2415*1555*1810 | 2350 |
LP110W-5 | 110/150 | 5 | 25 | DN100 | 2415*1555*1810 | 2650 |
LP132W-5 | 132/180 | 5 | 30 | DN125 | 3070*1845*2110 | 3250 |
LP160W-5 | 160/215 | 5 | 42 | DN125 | 3790*1900*2250 | 4200 |
