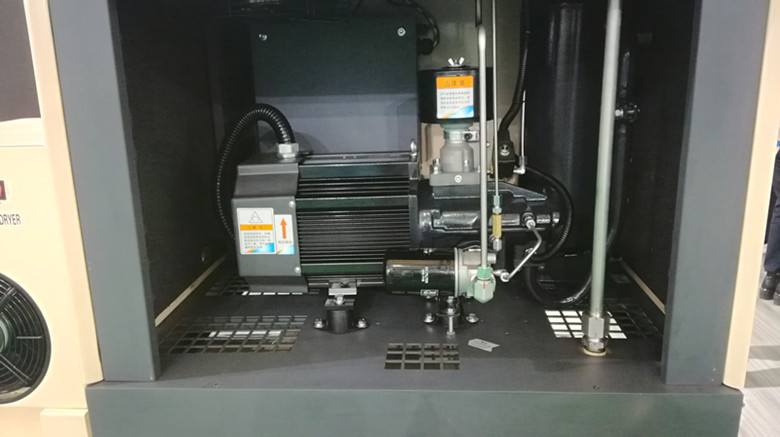

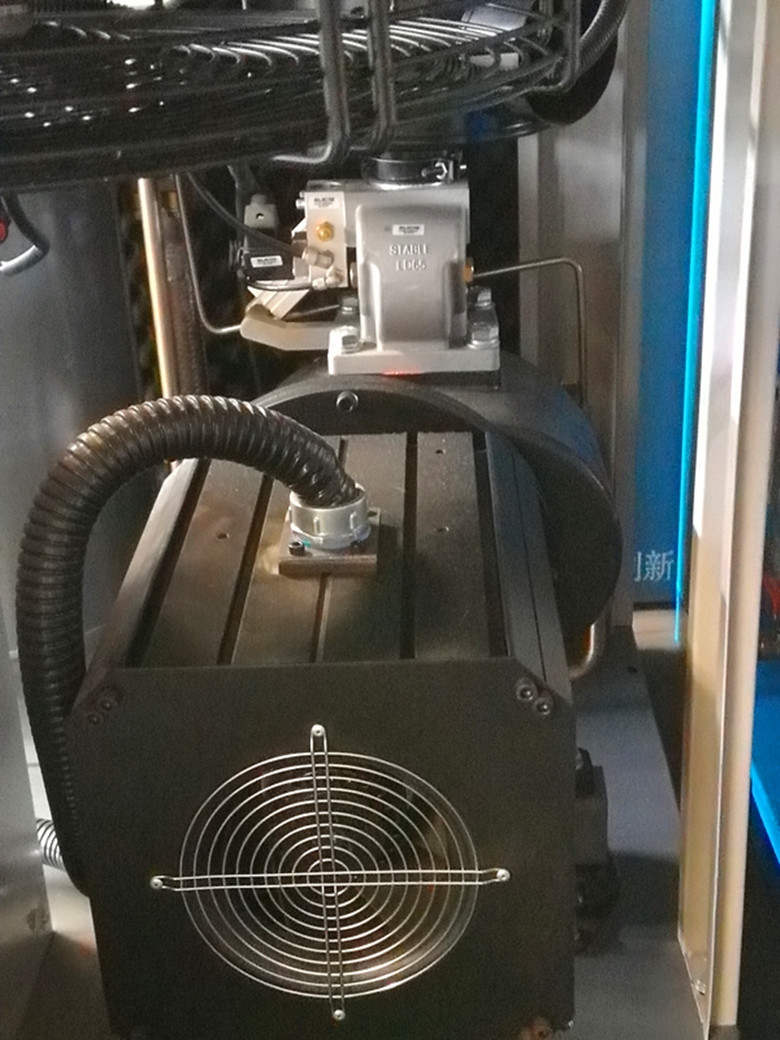

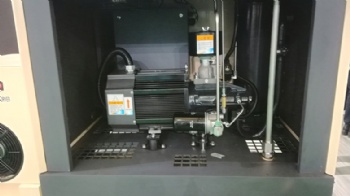

◇permanent magnet synchronizing motor variable speed screw air compressor
Performance Features:

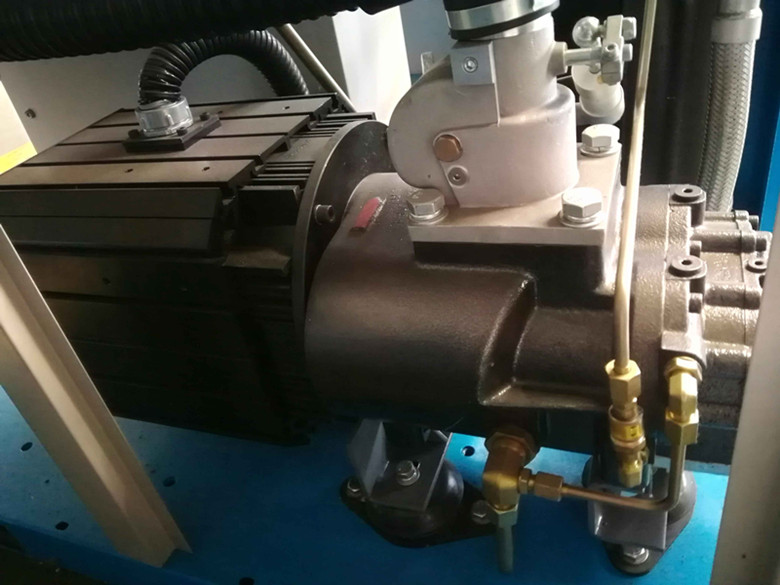

★high volumetric efficiency screw air end built by famous brand, with new profile 5/6 lobe relation

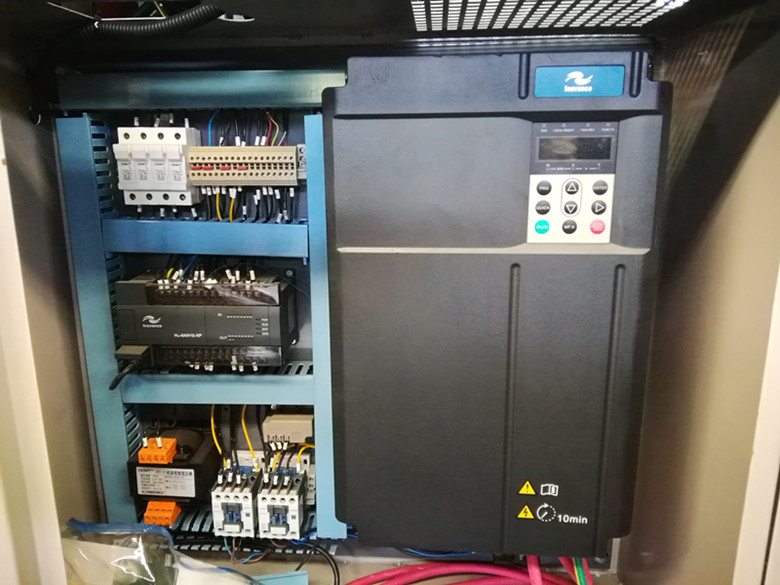

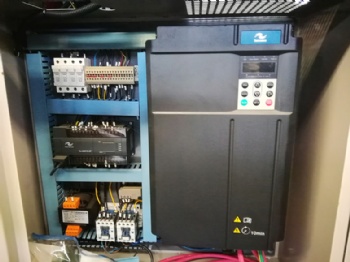

★Intelligent microprocessor control system, display information on control panel:
exhaust pressure and temperature, running time, current of motor, state of load/unload, using and replacing time for lubricant, air filter, oil filter and oil separator;
★Safety Indicating Device: safety valve, exhaust high temperature protection, exhaust high pressure protection, over current protection, less phase protection, reversed phase protection;
★Integrated oil separation system, with minimum pressure valve, thermostatic valve, safety valve;
★Cooler control method: variable frequency constant temperature control;
Big air/oil after cooler can be used in high temperature environment;
★Full sound enclosure with dual filtration;
★Synthesized lubricant, long life 4000 hours.
Technical Parameters:
Model | Power (kw/hp) | Pressure (bar) | Air Flow (m3/min) | Dimension (mm) | Weight (kg) |
PMV-7.5A | 7.5/10 | 6-10 | 0.28-1.35 | 840*600*880 | 240 |
PMV-11A | 11/15 | 6-10 | 0.32-2.1 | 910*700*1000 | 390 |
PMV-15A | 15/20 | 6-10 | 0.36-2.92 | 910*700*1000 | 410 |
PMV-18.5A | 18.5/25 | 6-10 | 0.45-3.38 | 1000*750*1090 | 450 |
PMV-22A | 22/30 | 6-10 | 0.58-3.6 | 1000*750*1090 | 470 |
PMV-30A | 30/40 | 6-10 | 0.62-5.4 | 1100*900*1260 | 550 |
PMV-37A | 37/50 | 6-10 | 0.90-6.90 | 1150*950*1360 | 650 |
PMV-45A | 45/60 | 6-10 | 1.02-8.8 | 1150*950*1360 | 670 |
PMV-55A | 55/75 | 6-10 | 1.38-10.8 | 1570*1200*1500 | 1350 |
PMV-75A | 75/100 | 6-10 | 1.67-13.9 | 1570*1200*1500 | 1480 |
PMV-90A | 90/125 | 6-10 | 1.91-19.2 | 1580*1450*1760 | 2500 |
PMV-110A | 110/150 | 6-10 | 2.4-23.6 | 1850*1450*1810 | 2800 |
PMV-132A | 132/180 | 6-10 | 3.1-26.80 | 2150*1650*1810 | 2900 |
PMV-160A | 160/215 | 6-10 | 6.13-32 | 2600*1700*1910 | 3500 |
PMV-185A | 185/250 | 6-10 | 6.4-33.6 | 2600*1700*1910 | 4000 |
PMV-200A | 200/270 | 6-10 | 6.52-36.8 | 2600*1700*1910 | 4100 |
PMV-220A | 220/300 | 6-10 | 6.52-42.6 | 2750*1700*1910 | 5000 |
PMV-250A | 250/340 | 6-10 | 6.8-46.2 | 2800*2050*2100 | 5120 |
PMV-280A | 280/380 | 6-10 | 7.1-52.1 | 3000*2000*2100 | 5600 |
PMV-315A | 315/420 | 6-10 | 4300*2250*2350 | 5800 | |
PMV-355A | 355/475 | 6-10 | 4300*2250*2350 | 6100 | |
PMV-400A | 400/535 | 6-10 | 4300*2250*2350 | 6500 |
