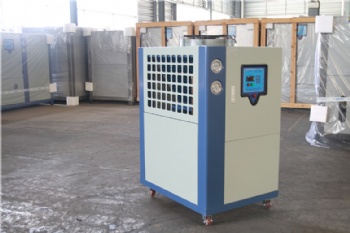

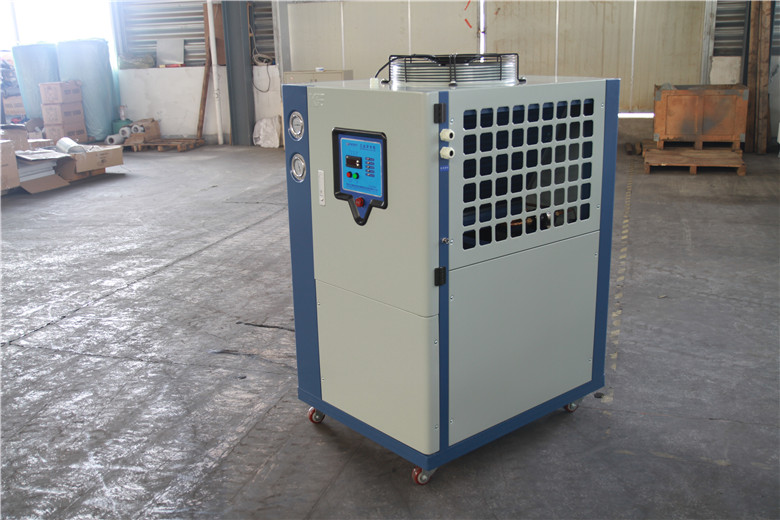

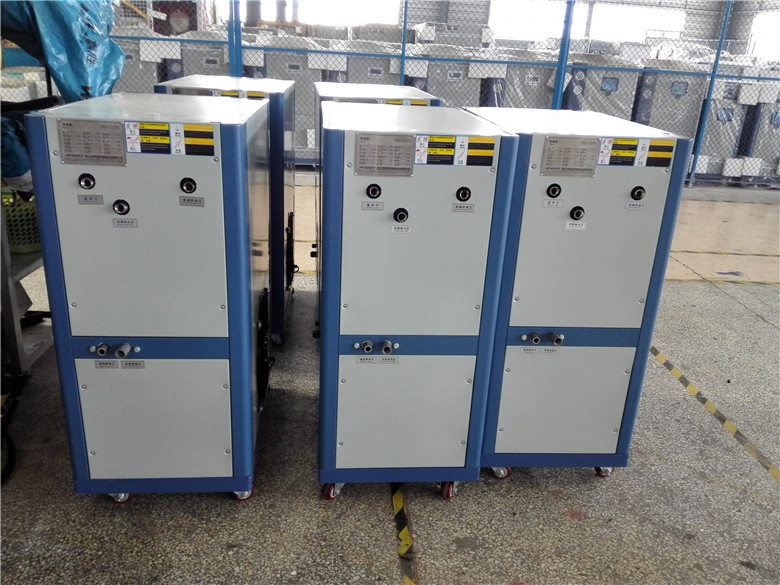

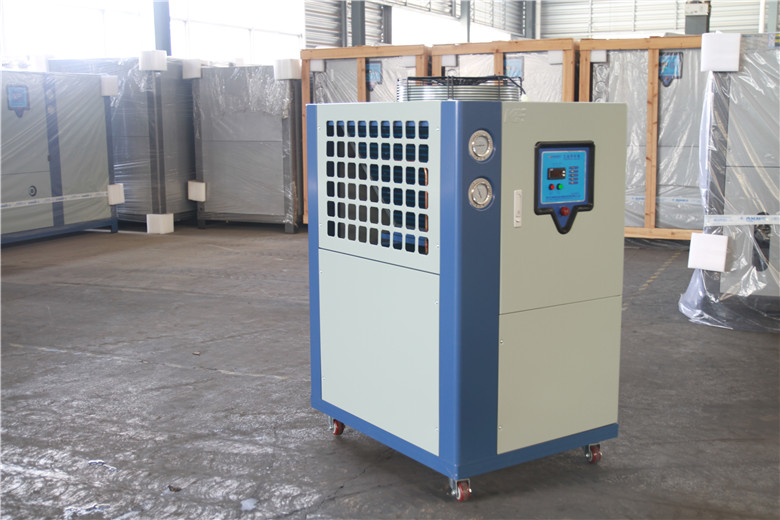

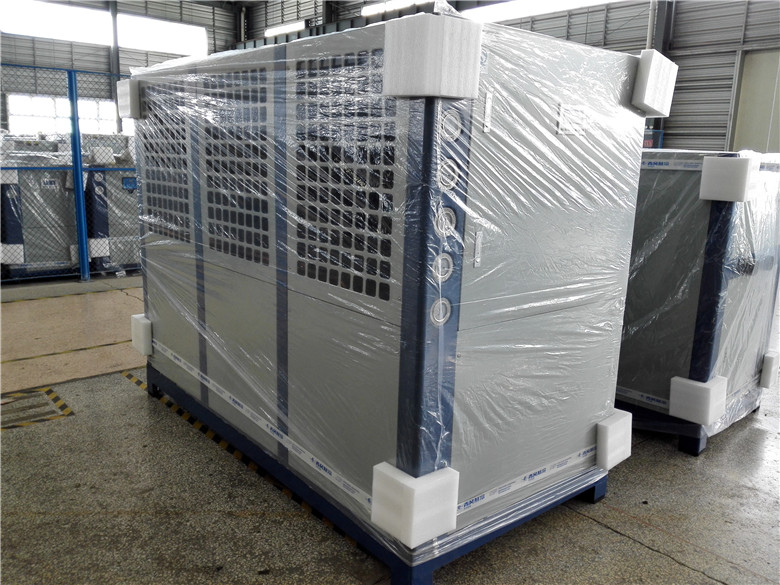

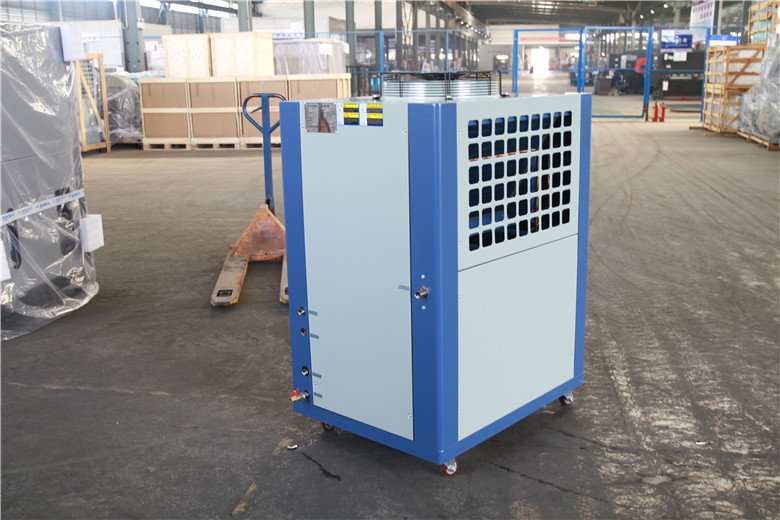

Air Cooled Water Chiller

A. Main part of our chiller

1.Compressor: use INVOTECH Full-hermetic scroll compressor

2.Evaporator: Internal screwed shell and tube type

3.Condensor: High efficient external screwed shell and tube type

4.Electronic Expansion Valve: Use Danfoss (Danmark) Valve

B.Detail information

1.Cooling capacity: 6.02kw~75.6kw

2. liquid inlet temperature is 12 degrees, outlet temperature is 7 degrees.

3. Cooling water inlet temperature 30 degrees,outlet temperature 35 degrees.

4. Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%. ( 3P-415V-60HZ and 3P-230V-60HZ is ok)

5. Accept orders for special requirements.

6. Industrial and durable design, with stainless steel water tank and high-lift pumps.

7. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year.

8. Designed as an independent refrigeration circuit, each compressor corresponding to one refrigeration circuit.

9. Refrigerant use R22 or choose to use environmental Friendly R410A refrigerant.

10.COP over than 2.5

11.Guarantee for 1Year
